What are the Types of Sustainable Drainage Systems?

Sustainable drainage systems (SuDS) are increasingly recognized as essential to modern urban planning and development. These systems are designed to manage stormwater effectively and integrate water management into the landscape in an environmentally beneficial way.

SuDS aims to treat rainwater as a resource rather than a waste product, addressing both the quantity and quality of urban runoff while enhancing the urban environment. This comprehensive article explores the various types of sustainable drainage systems, detailing their functions, benefits, and where they are most effectively implemented.

Rain Gardens

Rain gardens are shallow depressions planted with a mix of perennial plants, shrubs, and grasses tolerant of water inundation and drought conditions. These gardens are strategically placed to intercept runoff from impervious surfaces like roofs, driveways, and streets.

Rainwater is temporarily held in these depressions, allowing it to slowly infiltrate into the ground, reducing runoff and filtering pollutants. Rain gardens are particularly effective in residential and light commercial settings. They are visually appealing and can significantly enhance local biodiversity while managing water runoff at a micro scale.

Green Roofs

Green roofs or living roofs involve the growth of vegetation on rooftops. They can be extensive, with a thin layer of soil and simple plants such as sedum, or intensive, which are thicker and support a wider variety of plants, including shrubs and small trees.

Green roofs absorb rainfall, provide insulation, and reduce the temperature of buildings and the surrounding air (mitigating the urban heat island effect). They also add green space to urban areas, providing habitats for wildlife and recreational space for humans.

Permeable Pavements

Permeable pavements are surfaces that allow water to percolate through them into the ground below, reducing runoff and recharging groundwater supplies. They are constructed from pervious concrete, porous asphalt, or interlocking pavers.

Underneath these surfaces, a layered system of gravel or other aggregates acts as a temporary storage for the water, which slowly infiltrates into the soil or is released into the drainage system at a controlled rate.

Permeable pavements are ideal for parking lots, driveways, and low-traffic roads, combining functionality with effective water management.

Swales

Swales are shallow, broad, and vegetated channels designed to slow and capture runoff and facilitate its infiltration into the ground. They are often lined with grass and can be dry or wet, depending on the water presence and the vegetation type.

Swales effectively filter out silt and pollutants from runoff water. They are suitable for large-scale applications such as along roadsides, in parks, and as part of larger green infrastructure projects.

Bioretention Cells

Bioretention cells, or biofilters, are similar to rain gardens but are often more engineered and may include an underdrain system to manage excess water during heavy rainfall events. These systems consist of a soil mix, a mulch layer, and vegetation that can withstand occasional flooding as well as drought.

Bioretention cells are effective in parking lots and urban parks, where they can be integrated into landscape islands or along sidewalks.

Infiltration Trenches and Basins

Infiltration trenches are narrow, elongated, and filled with gravel to facilitate the rapid infiltration of runoff into the subsurface. These trenches are often covered with vegetation to enhance their appearance and functionality. Infiltration basins, on the other hand, are larger depressions that capture and hold runoff, allowing it to gradually infiltrate into the ground.

Both are suitable for industrial areas and large residential developments, where they can be integrated into the landscape to manage significant amounts of runoff.

Detention Basins

Detention basins are engineered structures designed to detain stormwater runoff temporarily and release it slowly, reducing peak flow rates to watercourses or storm sewer systems. They can be wet, maintaining a permanent water body, or dry, only holding water during and immediately after rainfall. These basins help prevent downstream flooding and can be landscaped to provide recreational space or natural habitats.

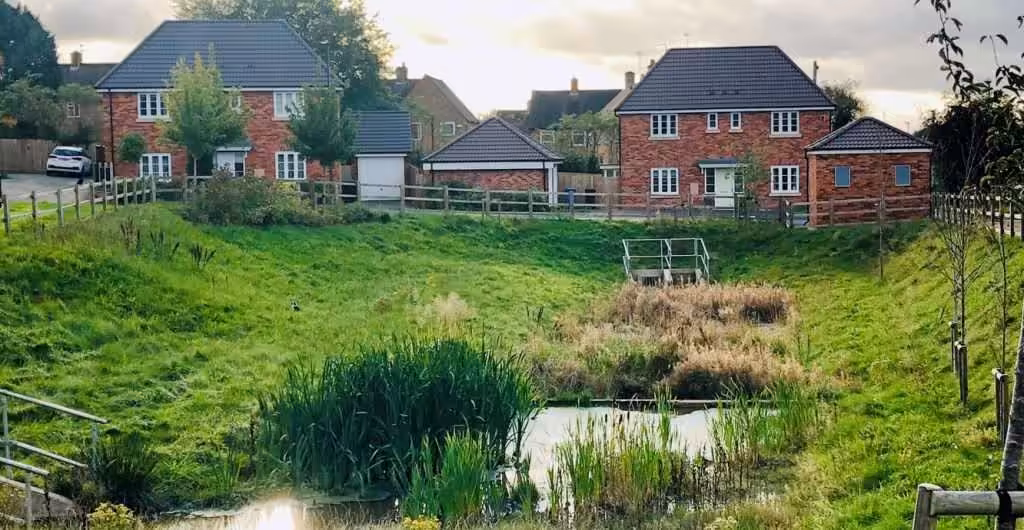

Constructed Wetlands

Constructed wetlands are engineered systems designed to simulate the functions of natural wetlands. They treat urban runoff by facilitating sedimentation, filtration, and biological uptake of pollutants.

Constructed wetlands treat large runoff from residential neighbourhoods, commercial developments, and industrial areas. They provide significant biodiversity and amenity benefits, making them a multifunctional component of urban drainage systems.

Conclusion

Sustainable drainage systems offer a versatile and effective solution to manage stormwater in urban environments. By mimicking natural water processes, they not only manage water quantity and improve quality but also enhance urban landscapes and biodiversity. Whether integrating a simple rain garden at a residential property or implementing a large-scale constructed wetland, SuDS play a crucial role in sustainable urban development. As cities continue to grow, the implementation of these systems
